Homebrew Kettle

2018-06-02 1638

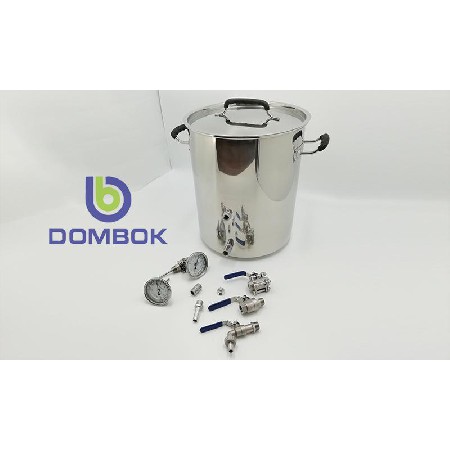

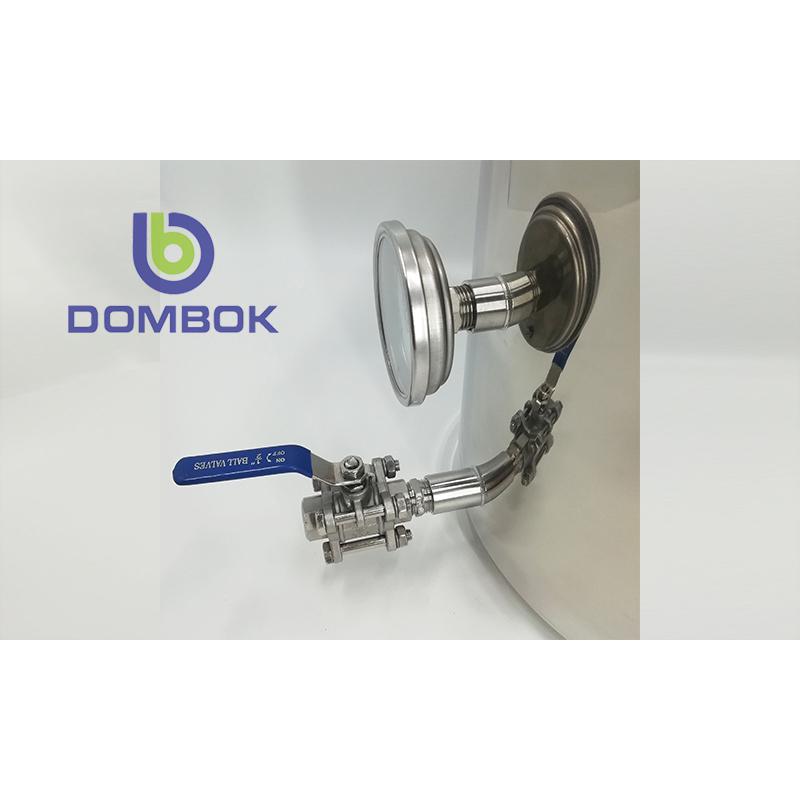

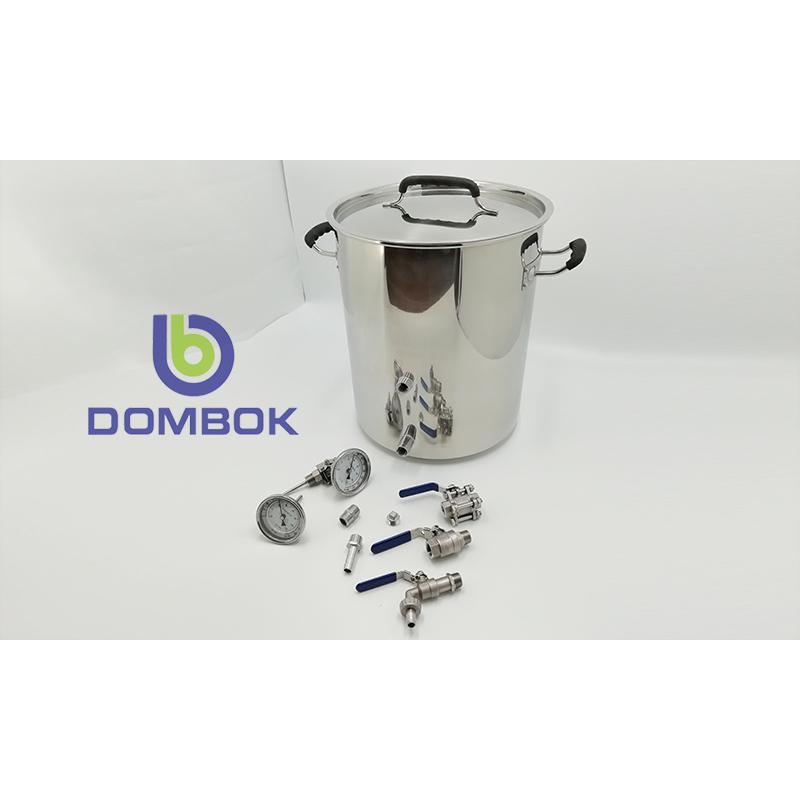

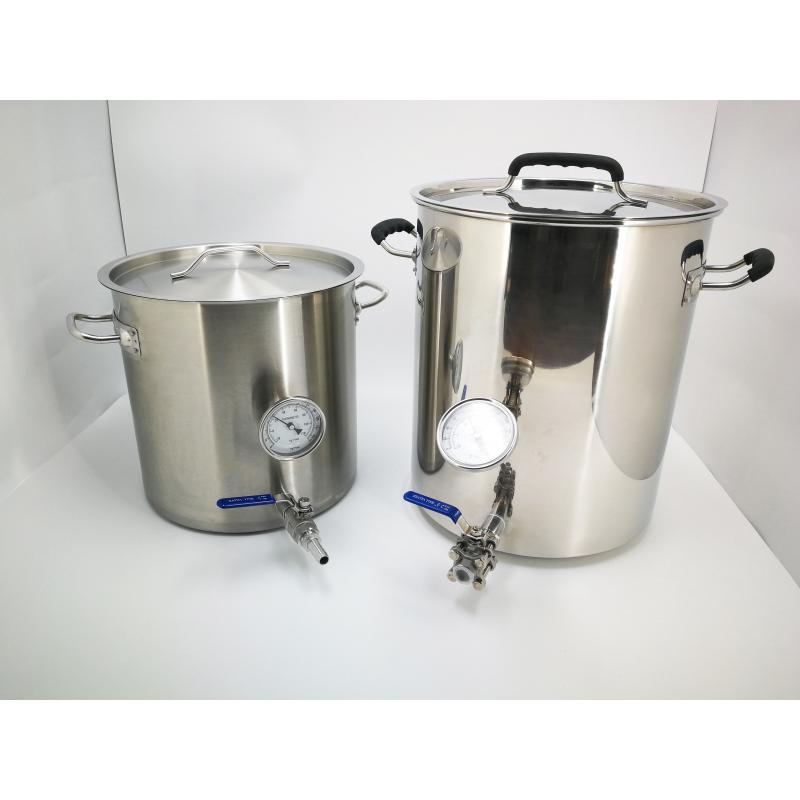

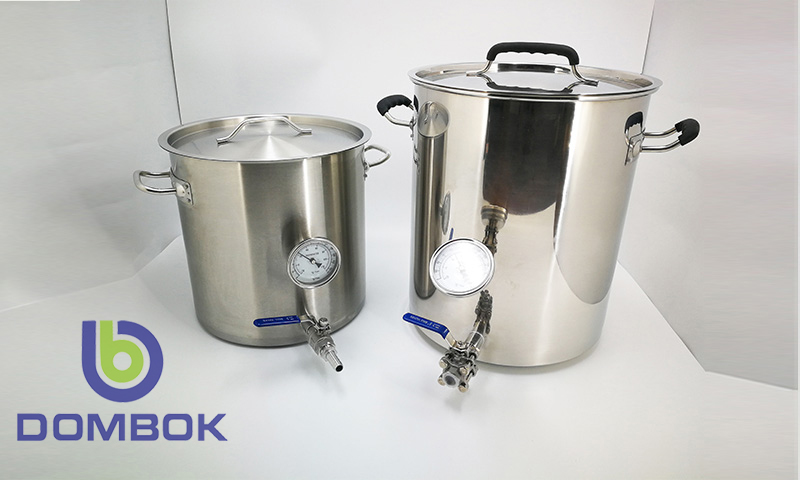

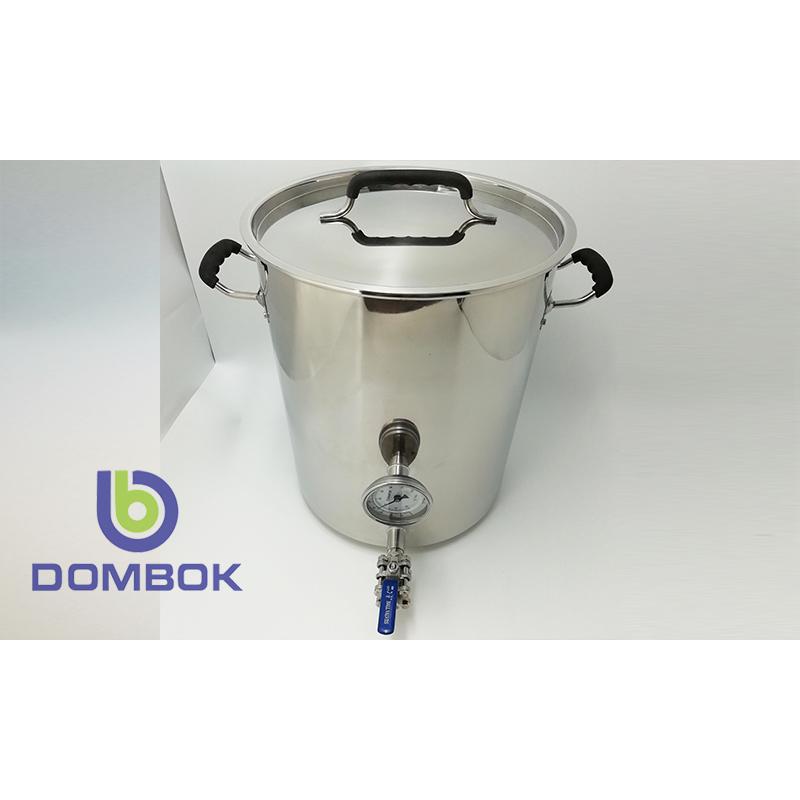

This range of brew kettles are constructed of heavy duty 304 stainless steel with a tri-clad bottom made specifically for even heat distribution. 1.21 size ratio is to reduce losses due to evaporation during the boil. The kettle comes equipped with a lid that was conveniently designed to hang on the kettle's riveted handles. Features internal volume markers in liters and gallons, standard comes with 1/2” NPT 3 piece ball valve and 3 ” dial type thermometer, can being used as a small mash tun, hot liquor tank, boil kettle. Every size of this model comes in your choice un-drilled hole or with 2 half inch couplers only.





Dimensions
(dia. x h) (mm)

Dimensions
(dia. x h) (inch)

Body

Thickness

 (mm)

Bottom Thickness

 (mm)

Capacity

(Gallon)

Capacity

(Quart)

Packing Dimensions
(dia. x h) (mm)

φ320*H380

12.6"*15.0"

1.0

4.6

8gal

32QT



φ350*H420

13.8"*16.5"

1.0

4.6

10gal

40QT



φ400*H480

15.8"*18.9"

1.2

5.8

15gal

60QT



φ450*H540

17.7"*21.3"

1.2

5.8

20gal

80QT



φ500*H600

19.7"*23.7"

1.2

5.8

30gal

120QT



φ600*H720

23.6"*28.3"

1.2

5.8

50gal

200QT





REMARK: Size can be customized as required.
